RCA Males

Top of the line, signature series, solderable male RCA with spring tensioner for uncompromising contact strength. Threaded cable entry allows the use of adapters for 11mm and 13mm cable diameters. Gold plated brass screw on outer cover with screen printed logo.


Base metal: High copper content, non-magnetic brass.
Contact Surface: Silver/rhodium
Cable opening: 9.5mm/0.37”

This part requires solder. Click here to learn about Cardas Quad Eutectic Solder & Cardas Rosin Flux. Click here for our soldering how-to videos.

Part Number: P32.29

High performance solderable male RCA. Gold plated screw on outer cover. Same design as the flagship SRCA but without the spring tensioner and threaded cable entry.



Base metal: High copper content, non-magnetic brass.

Contact Surface: Silver/rhodium
Cable opening: 8.6mm/0.33”

This part requires solder. Click here to learn about Cardas Quad Eutectic Solder & Cardas Rosin Flux. Click here for our soldering how-to videos.

Part number: P32.9

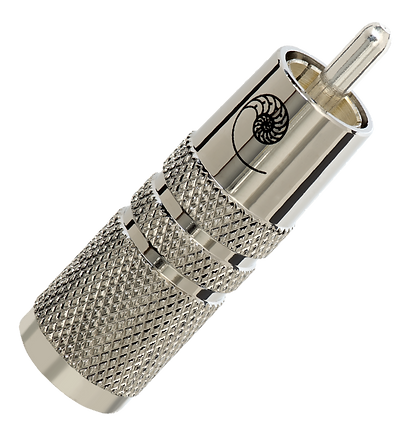

Description: High performance solderable male RCA. Silver plated screw on outer cover with screen printed logo. Same design as the flagship SRCA but without the spring tensioner and threaded cable entry.

Base metal: High copper content, non-magnetic brass.

Contact Surface: Bare Silver
Cable opening: 8.6mm/0.33”

This part requires solder. Click here to learn about Cardas Quad Eutectic Solder & Cardas Rosin Flux. Click here for our soldering how-to videos.

Part number: P32.19

Solderable male RCA. Gold plated screw on outer cover threads on from the back. Designed for smaller cables and applications where space is limited.

A model with a smaller cable opening, the GRMO 6, is also available.

Base metal: High copper content, non-magnetic brass.

Contact Surface: Silver/rhodium


GRCM, cable opening: 7.77mm/0.30”

GRCM0-6, cable opening: 6.0mm/0.23”

This part requires solder. Click here to learn about Cardas Quad Eutectic Solder & Cardas Rosin Flux. Click here for our soldering how-to videos.

Part Numbers:

P32.19 for GRCM

P32.4 for GRCM 6
